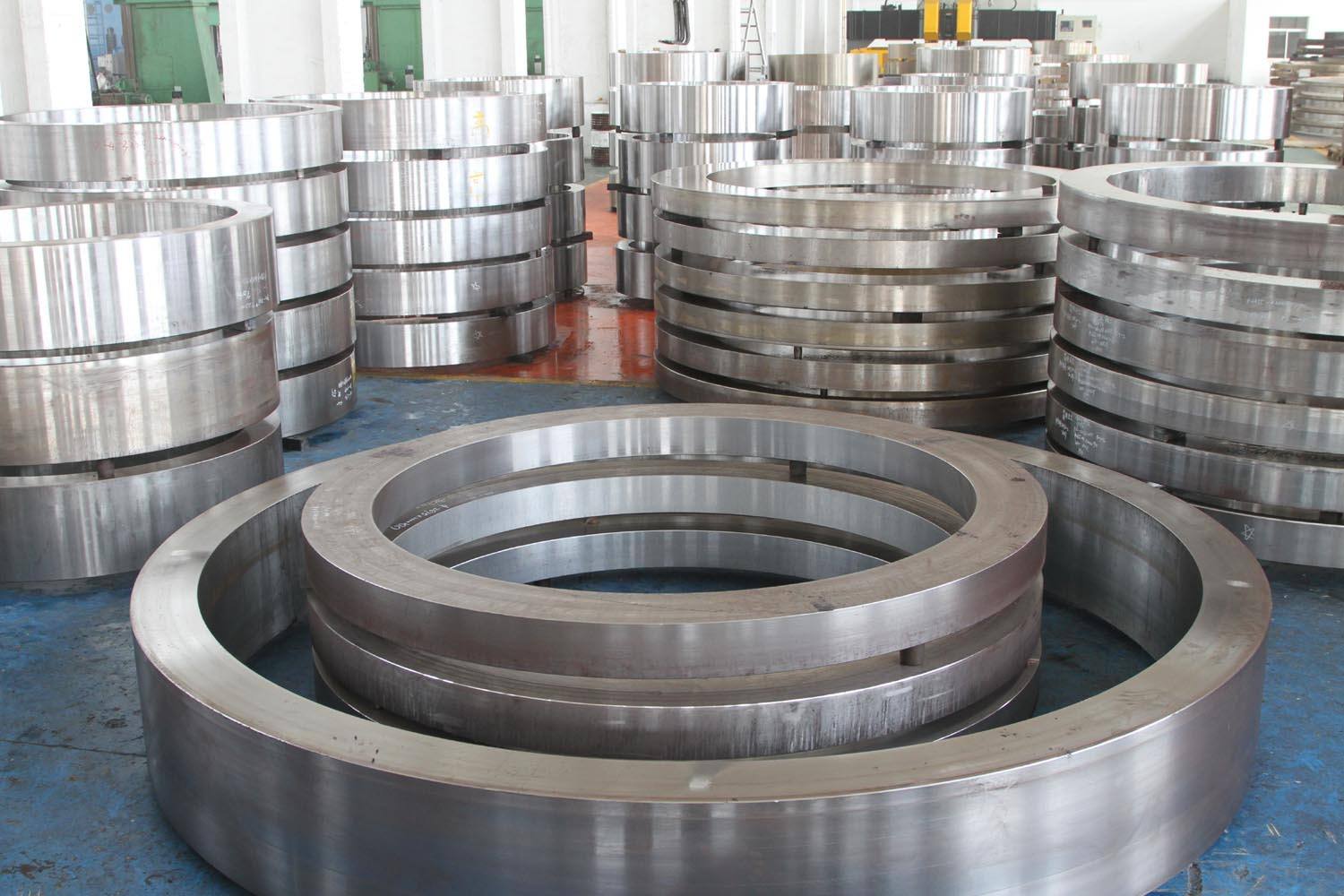

Specification introduction of thick wall forging Aluminium ring
Alloy state: 7075 T6
Specification: 1900mm x 1200mm x 85mm
Introduction of mechanical properties:
Tensile strength: >530MPA
Yield strength: >450MPA
Elongation:> 8%
Hardness: above HB140
Chemical composition of thick wall forging Aluminium ring
Si: 0.40
Fe: 0.50
Cu: 1.2-2.0
Mn: 0.30
Mg: 2.1-2.9
Cr: 0.18-0.28
Zn: 5.1-6.1
Ti: 0.20
Al: margin
Others: Single: 0.05 Total: 0.15
Application of thick wall forging Aluminium ring
thick wall forging Aluminium ring are used to produce the necessary fastening parts for the sealing of aviation, aerospace, military and industrial equipment.
