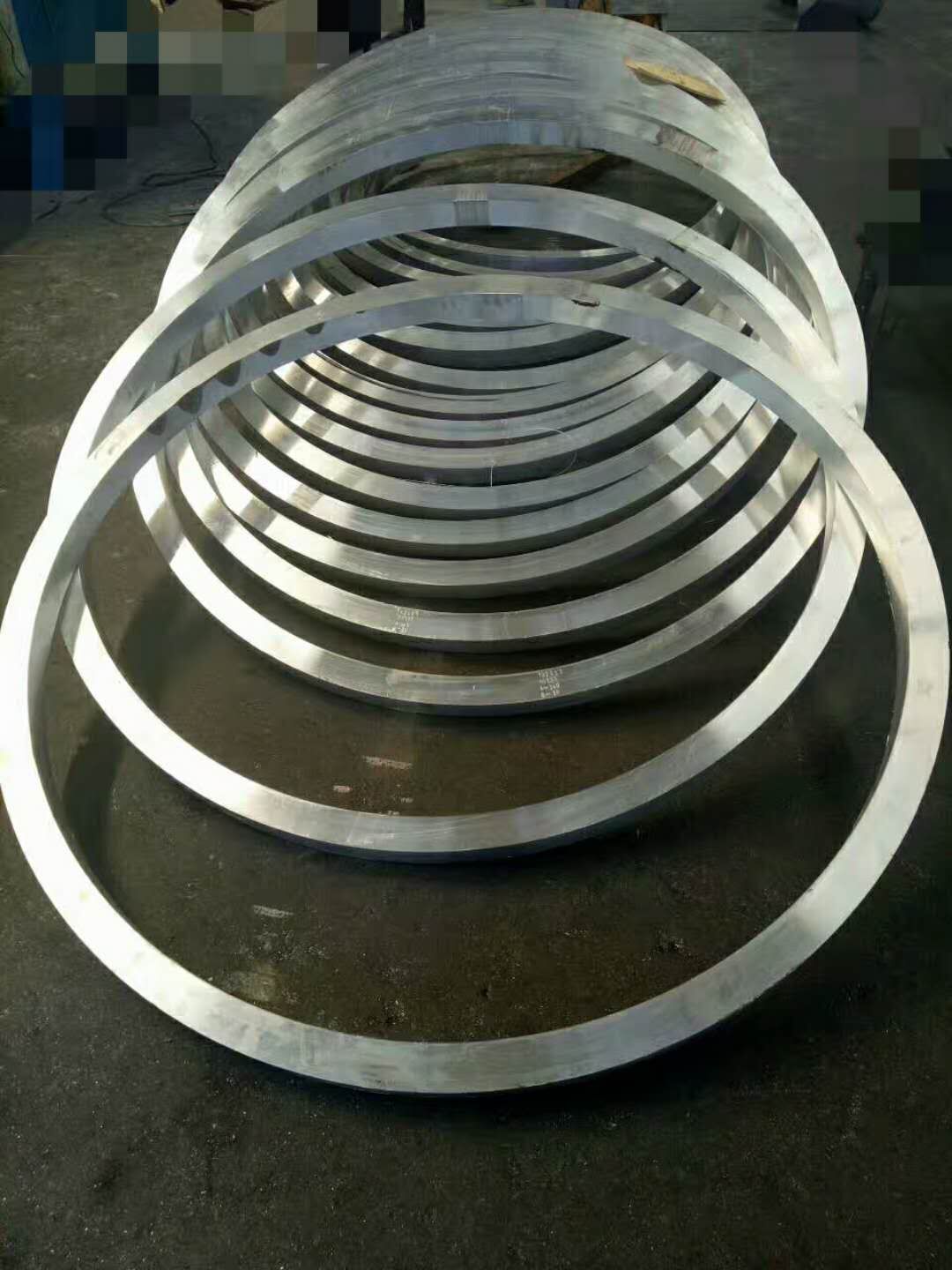

7075 aluminum alloy forged ring

7075 aluminum alloy forged ring introduction
The 7075 aluminum alloy forged ring is a cold-treated forged alloy ring with high strength and far better than mild steel. The 7075 aluminum alloy forged ring is one of the most powerful alloys for commercial use. The 7075 aluminum alloy forged ring has a compact structure and strong corrosion resistance, and is the best for aviation and marine plates. Common corrosion resistance, good mechanical properties and anode reaction. The fine grain makes the deep drilling performance better and the tool wear resistance is enhanced.



Physical properties of 7075 aluminum alloy forged ring

Tensile strength: 524Mpa
0.2% yield strength: 455Mpa
Modulus of elasticity E: 71GPa
Hardness: 150HB
Density: 2.81g/cm^3

7075 aluminum alloy forged ring chemical composition
Silicon Si: 0.40
Iron Fe: 0.50
Copper Cu: 1.2-2.0
Manganese Mn: 0.30
Magnesium Mg: 2.1-2.9
Chromium Cr: 0.18-0.28
Zinc Zn: 5.1-6.1
Titanium Ti: 0.20
Aluminum Al: balance
Other: Single: 0.05 Total: 0.15

Main purpose of 7075 aluminum alloy forged ring
7075 aluminum alloy forged ring has light weight, high strength 7075T6 hard aluminum alloy forged ring - aviation, aerospace, military, industrial equipment seal necessary fastening parts
