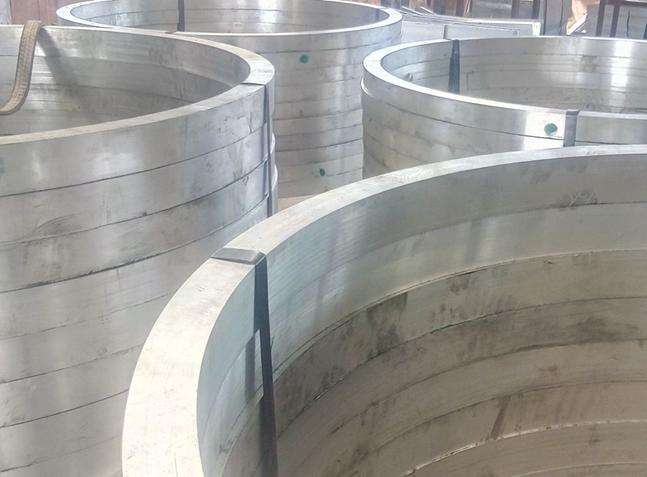

The specification introduction of 2219 T6 forged aluminum ring
Alloy temper: 2219 T6
Specification: φ1800mm x φ1580mm x 310mm
Introduction of mechanical properties:
Tensile strength: >410MPA
Yield strength: >330MPA
Elongation:> 8%
The chemical composition of 2219 T6 forged aluminum ring
Si: 0.20
Fe: 0.30
Cu: 5.8~6.9
Mn: 0.20~0.40
Mg: 0.02
Zn: 0.10
Ti: 0.29~0.10
Zr: 0.10~0.25
V: 0.05~0.25
Other single: 0.05, 0.15 margin
Application of 2219 T6 forged aluminum ring
2219 T6 forged aluminum ring is used to produce the necessary fastening parts for the sealing of aviation, aerospace, military and industrial equipment.
